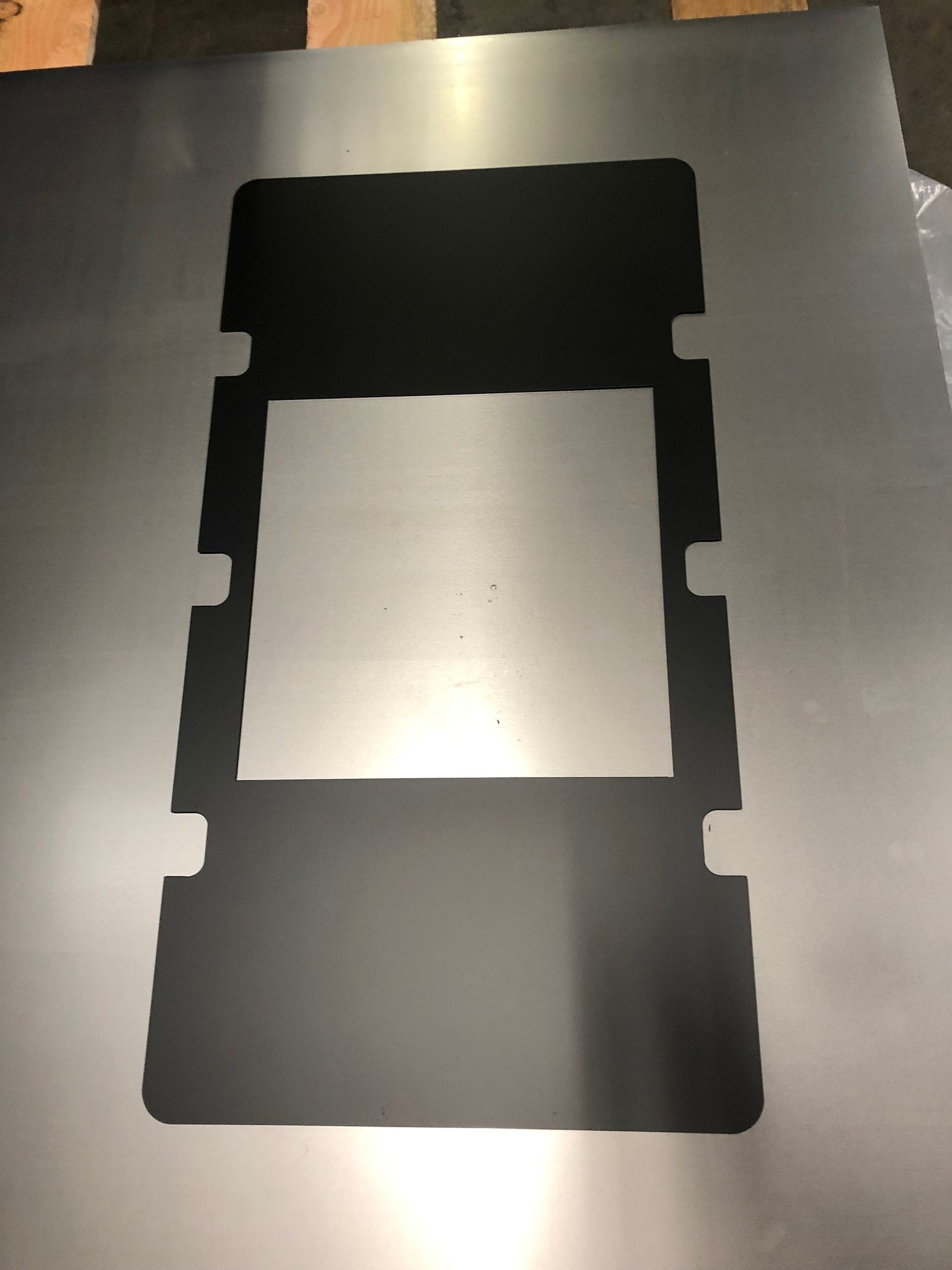

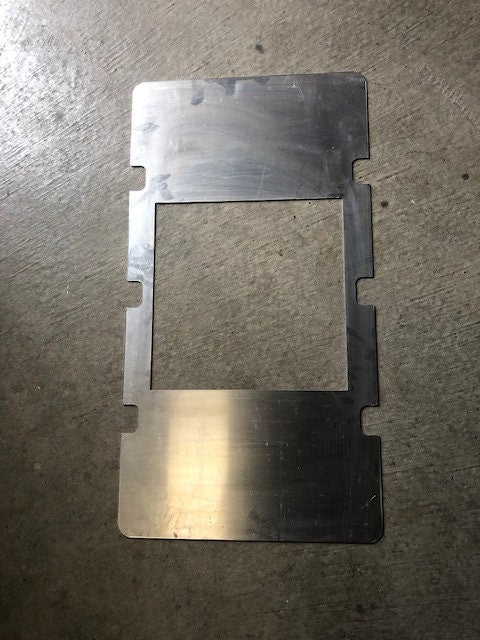

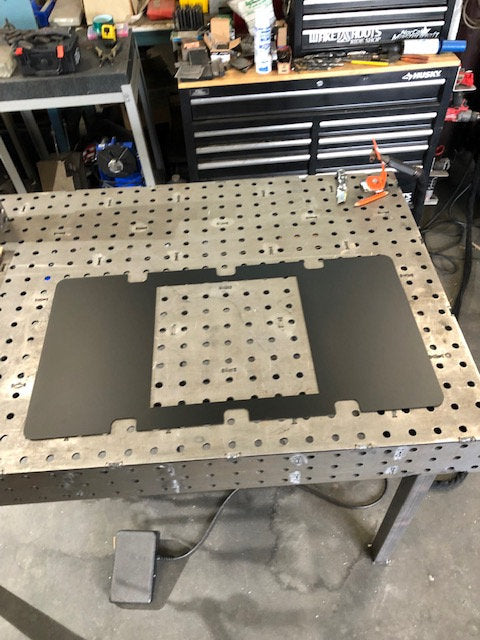

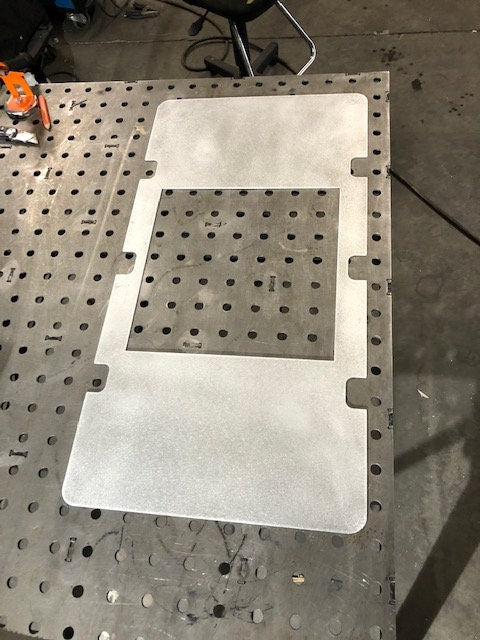

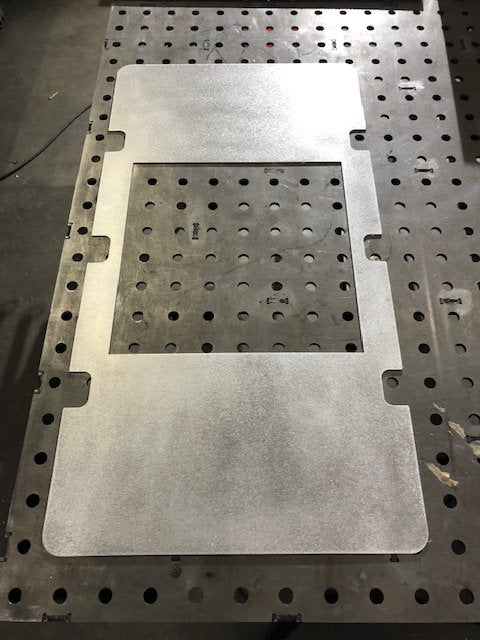

Aluminum plate for covering OEM AC hole and ports and installing RV vent in center. For Sprinter 2007 to 2018 with factory installed roof AC. Plates are .090 thick unfinished aluminum or choice of black powder coat. Also includes 3 smaller plates for covering 3 ports. Prep surface of roof by cleaning and de glossing with isopropyl alcohol and scotch-brite pad. Apply VHB in warm conditions and use heat and pressure to set after installation. Seal perimeter edge of plates with 3M 4412N extreme sealant tape or Dicor self leveling sealant. If using tape work from rear edge forward so front pieces overlap rear pieces. Remove release film from top of tape so it can be laid
around corners and next layer will stick. Recommend that plate and sealant tape can be painted to match vehicle. 14x14" opening. OEM AC hole will need to be enlarged to 14 by trimming approximately 1/4" along front edge. This can be done after plate is installed.
The outside dimension of the plate is 18 inches X 34 inches
This Plate will NOT work on the VS30 Sprinter.
We also offer the AC Replacement Plate with no hole.
